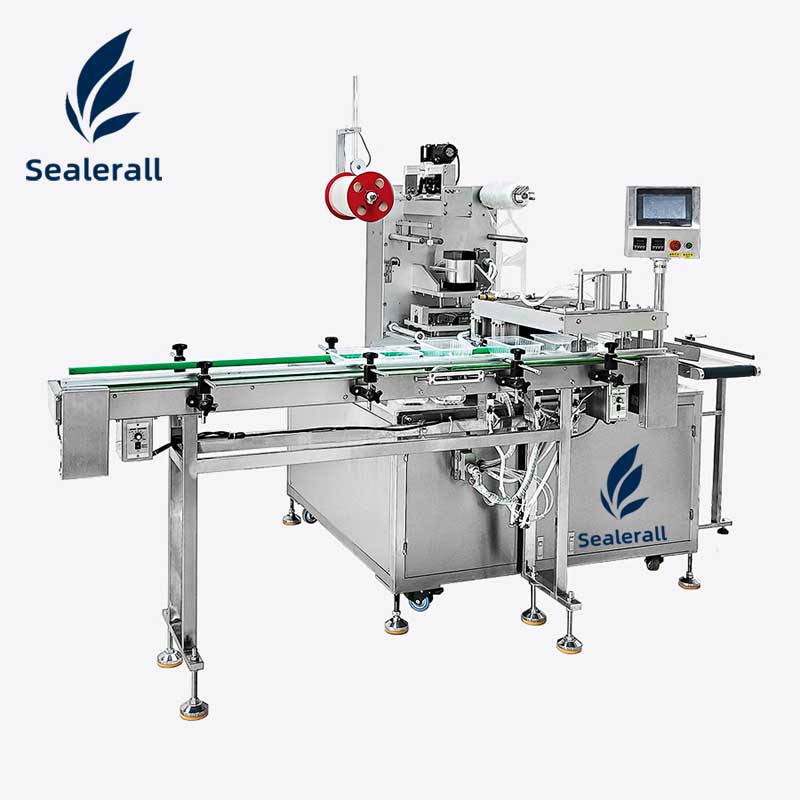

Sealerall LD672-C Fully Automatic Disc Rotary Sealing Machine One out of Tow

Product Overview

This machine is a new type of disc rotary automatic sealing machine developed according to customer requirements, which can be equipped with a filling machine. The sealing film can be a roll film or a sheet film, either of which can be selected, automatic hot pressing sealing, automatic cup/box top, and can seal 2 boxes, 4 boxes or more boxes at a time, saving human resources and improving production efficiency.

Sealing machine functions and configurations:

1. One out of two, the mold can be replaced, and it is compatible with cups, bowls, boxes, bottles, barrels and cans of various shapes and sizes.

2. Production speed: One out of two: 1000-1200 boxes/hour

3. Production process: manual box placement, the robot automatically places the sealing film piece by piece, automatically seals the film, automatically prints the production date (this is optional), and automatically produces the finished product.

4. It can be connected to the production line, unmanned operation, saving manpower and improving production efficiency.

5. Taiwan PLC program control, stable and reliable, the human-machine interface is a touch screen.

6. Classic digital display temperature control meter, temperature difference plus or minus 5 degrees, good sealing effect.

7. It is equipped with fault alarm and temperature alarm functions to ensure the sealing effect.

8. Taiwan photoelectric eye tracking, electrical integration.

9. Sealing material: consistent with the cup material, can be heated and bonded, plastic composite film or aluminum foil composite film, such as composite PP, composite PE, composite PET, composite PS, etc.

10. Air pressure range: 4-8KG/CM2

11. Adjustable temperature range: room temperature - 300 degrees

12. Power: 1000-2000W

13. Voltage: 110V or other voltages can be customized according to customer needs

14. Machine size: 1000*1000*1500MM (customized products, subject to actual conditions)

15. Machine frame structure: Made of high-quality stainless steel 304#, food-grade process 2B plate with brushed effect, dust-proof and rust-proof, acid-resistant and alkali-resistant; pure hand-polishing and polishing, fine workmanship.

16. Sealing system: constant temperature, intelligent temperature control, hot pressing sealing, sealing head is high-quality aluminum alloy, mold part: acid-resistant aluminum alloy mold (6061 aluminum alloy), CNC processing, high precision, anodized anti-oxidation treatment, no deformation, corrosion resistance, high hardness, long life. Non-sand cast aluminum!

17. Cup dispensing system: electric eye induction, base cylinder lifts up; upper cylinder connects to the pull-out mechanism to pull out.

18. Net weight: 500KG

19. Packing method: wooden box or wooden frame

20. Accessories: 2 10A fuses, one instruction manual, one hexagonal wrench, one cross screwdriver, one paper tube.

Main configuration list:

Operation screen: Taiwan Weiluntong touch screen human-machine interface

PLC: Delta PLC

Inverter: Delta inverter

Motor: Taili motor

Divider: Lianrui divider

Cylinder: Taiwan Yadeke cylinder

Solid state: Taiwan Yangming

Power supply: Delta

Relay: France Schneider

Mold assembly: Aluminum alloy oxidation

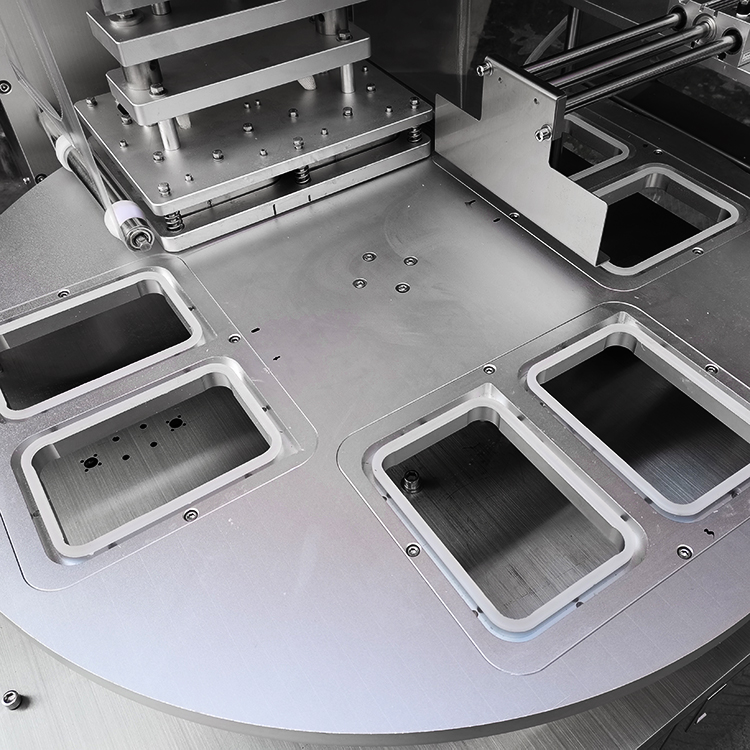

Disc assembly: Aluminum alloy oxidation
